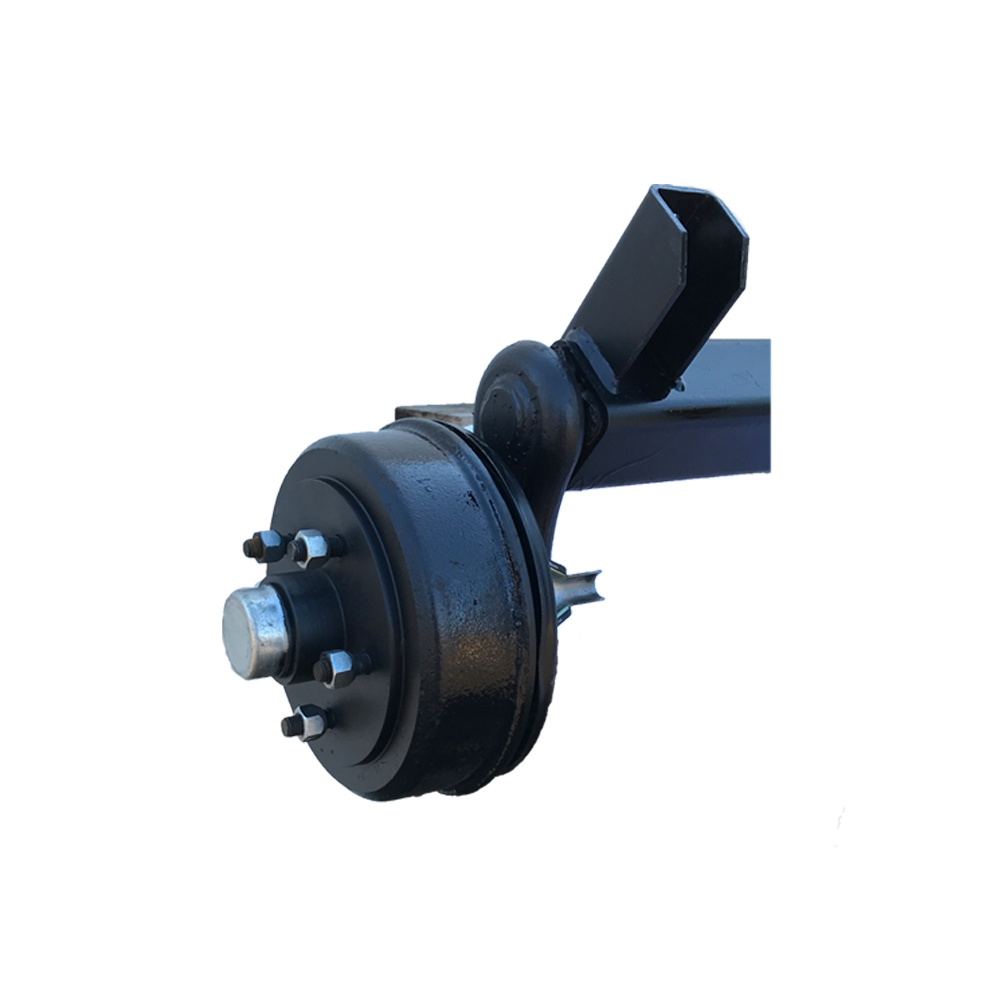

Peak 1500kg Axle 54″ Fixing Centres 5/112 PCD – LBED

£525.00 (+ VAT)

£630.00 (incl. VAT)

Peak 1500kg axle 54″ fixing centres with rubber suspension.

Comes complete with Knott brakes, drums and bearings.

Fitted to many 6ft6in wide Graham Edwards trailers with wheels underneath pre 2012.



Dimensions

Over Hub Face: 69½”

Cut Length: 57½”

Fixing Centre: 54″

Brake Drum Internal Diameter: 8″ (200mm)

PCD: 5 Stud on 112mm

IF YOU HAVE ANY DOUBTS ABOUT ORDERING YOUR AXLE PLEASE CONTACT US TO ADVISE. AS THEY ARE VERY HEAVY AND EXPENSIVE TO TRANSPORT.



Definitions

Over Hub Face – Measurement of the hub face to the opposite hub face.

Cut Length – Measurement of the overall axle beam.

Fixing Centre – Measurement of the fixing bolt holes centre to centre.

PCD: Pitch circle diameter is the diameter of the wheel studs.



Axle drawings for better understanding can be found here.



Specifications

Weight
60 kg
Country of manufacture
SKU: AXL102100 Tag:
