Pair of 1300kg Knott Suspension Units Braked – 5.5″ PCD

£300.00 (+ VAT)

£360.00 (incl. VAT)

Out of stock

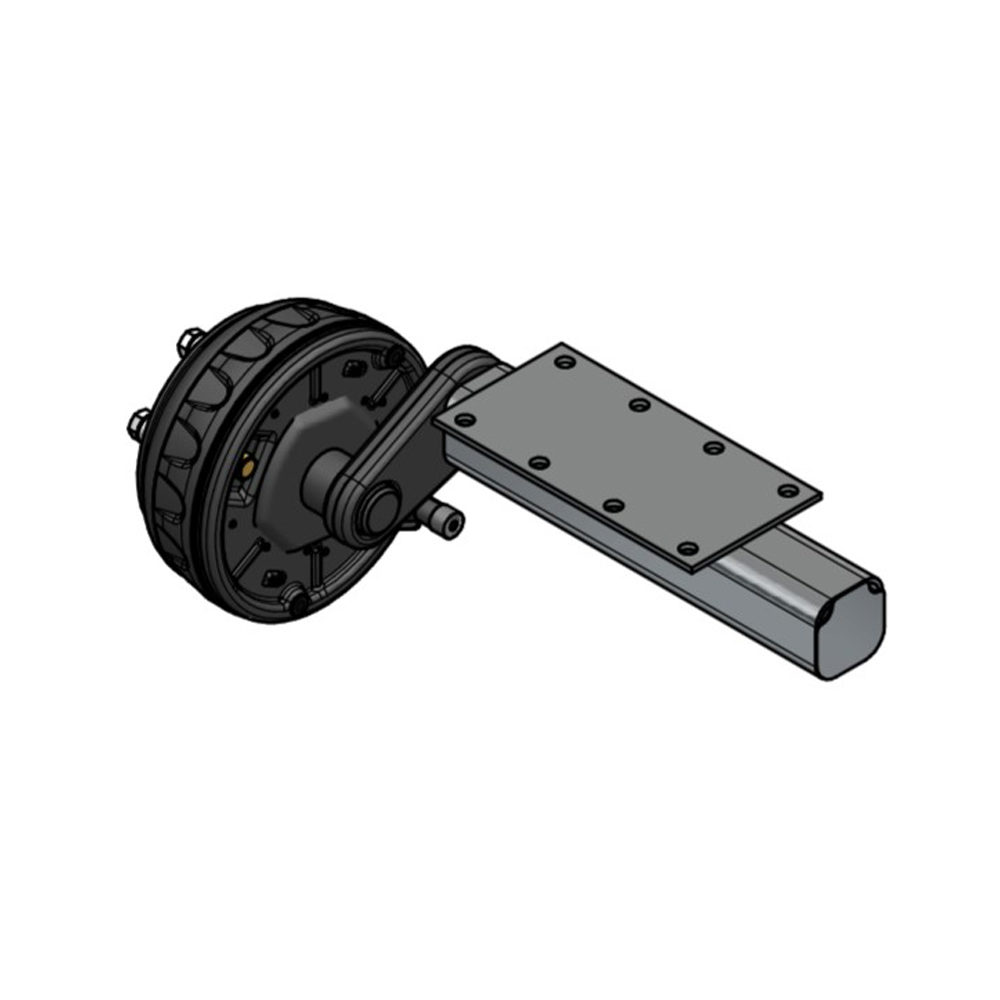

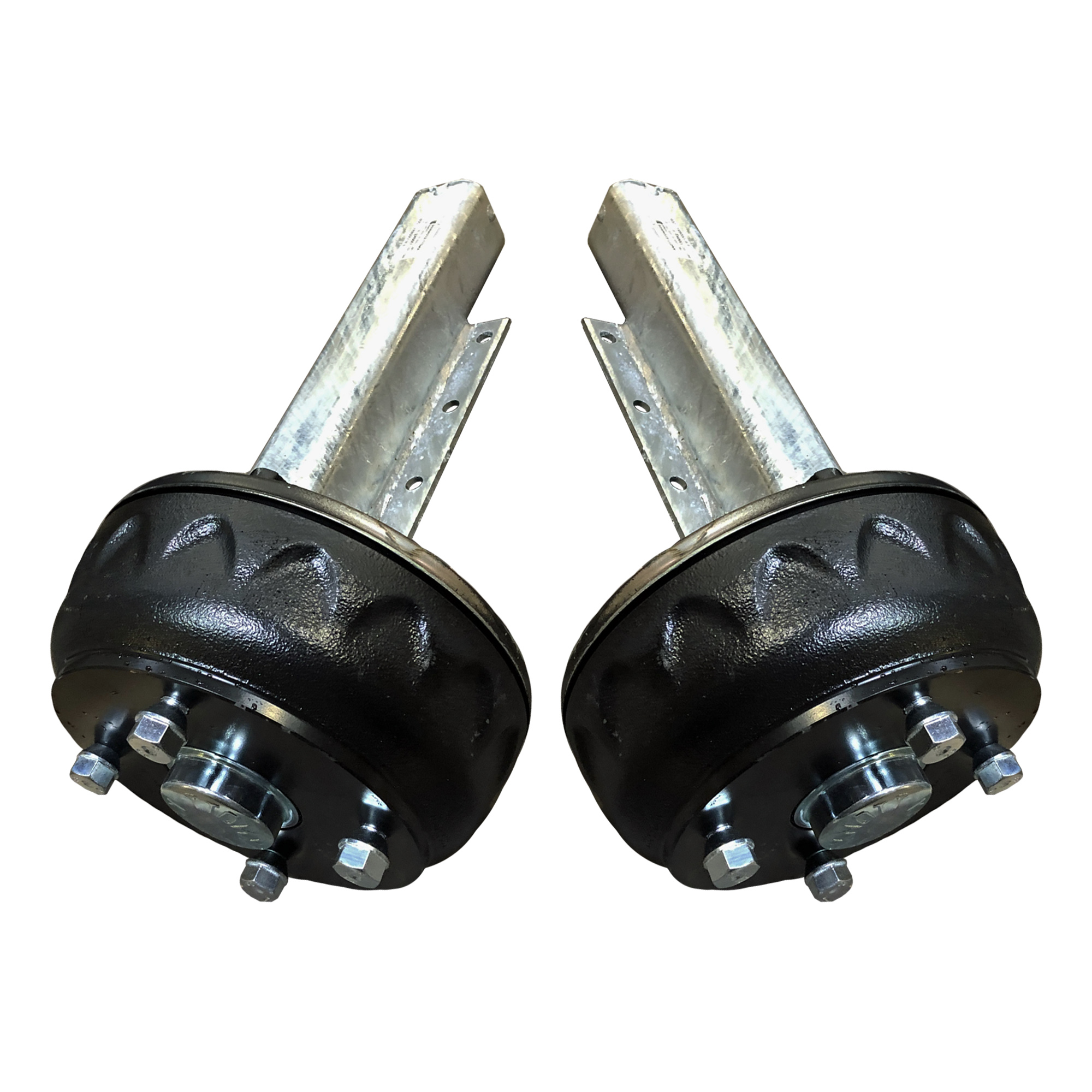

Pair of genuine 1300kg Knott suspension units. Come complete with Knott 200×50 brake drum.

Galvanised body with rubber suspension arms, 8 hole mounting.

These suspension units have a standard length shaft for wheels that have no offset.

These come pre assembled from the supplier to make for quicker repair/build.

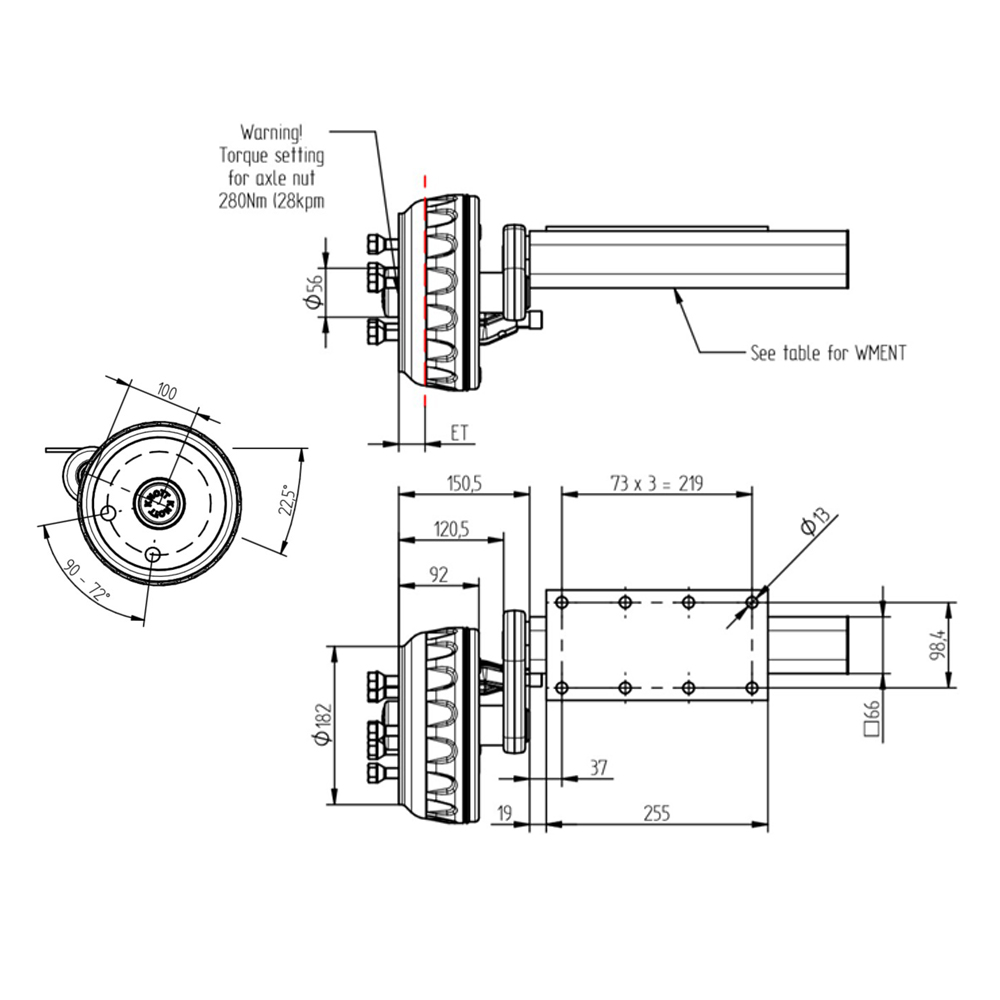

  • 1300kg Capacity Per Pair
  • 4 studs on a 5.5″ PCD
  • 8 hole mounting plate size 250mm x 130mm
  • Fixing centres along the 4 bolt holes 73mm between each one
  • Fixing centres width of the 2 bolt holes 98.4mm between the two


PCD – Pitch circle diameter is the diameter of the wheel studs.


We also stock 750kg suspension units found here.



44 kg
