Pair of 750kg SPP Suspension Units – 4″ PCD

£99.99 (+ VAT)

£119.99 (incl. VAT)

1 in stock

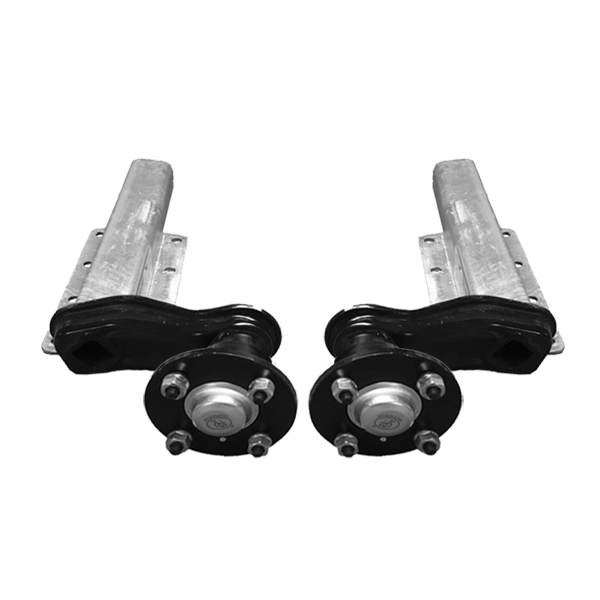

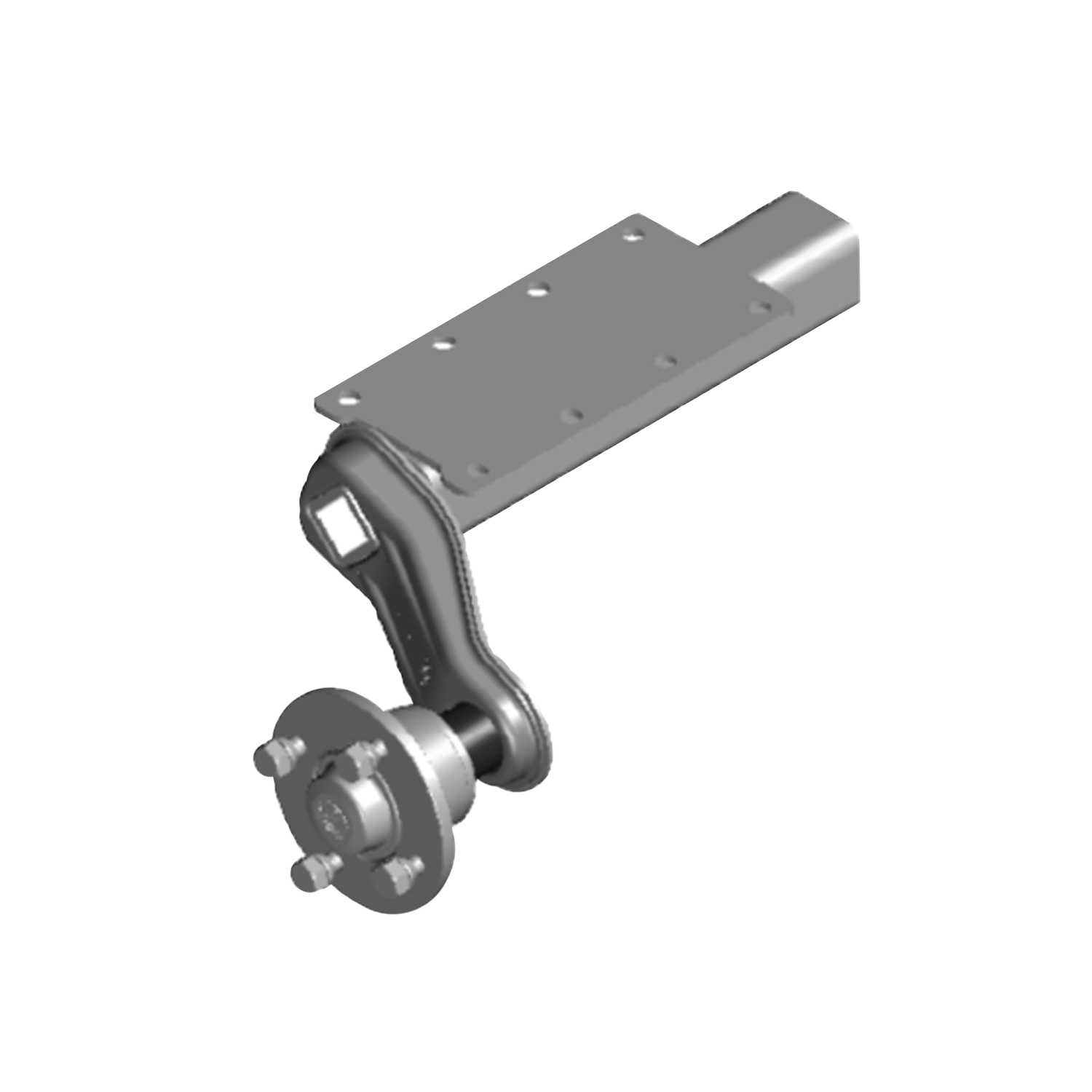

Pair of genuine 750kg SPP suspension units. Come complete with 4″ PCD hubs mounted to a standard shaft.

Galvanised body with steel rubber suspension arms, 8 hole mounting.

Come with sealed bearings for maintenance free operation. Ideal for boat trailers, general purpose trailers and any other trailer with a capacity of 750kg.


These come pre assembled from the supplier to make for quicker repair/build.

Suspension units x 2
Hubs x 2
Sealed bearings x 2
Hub caps & one shot nuts x 2

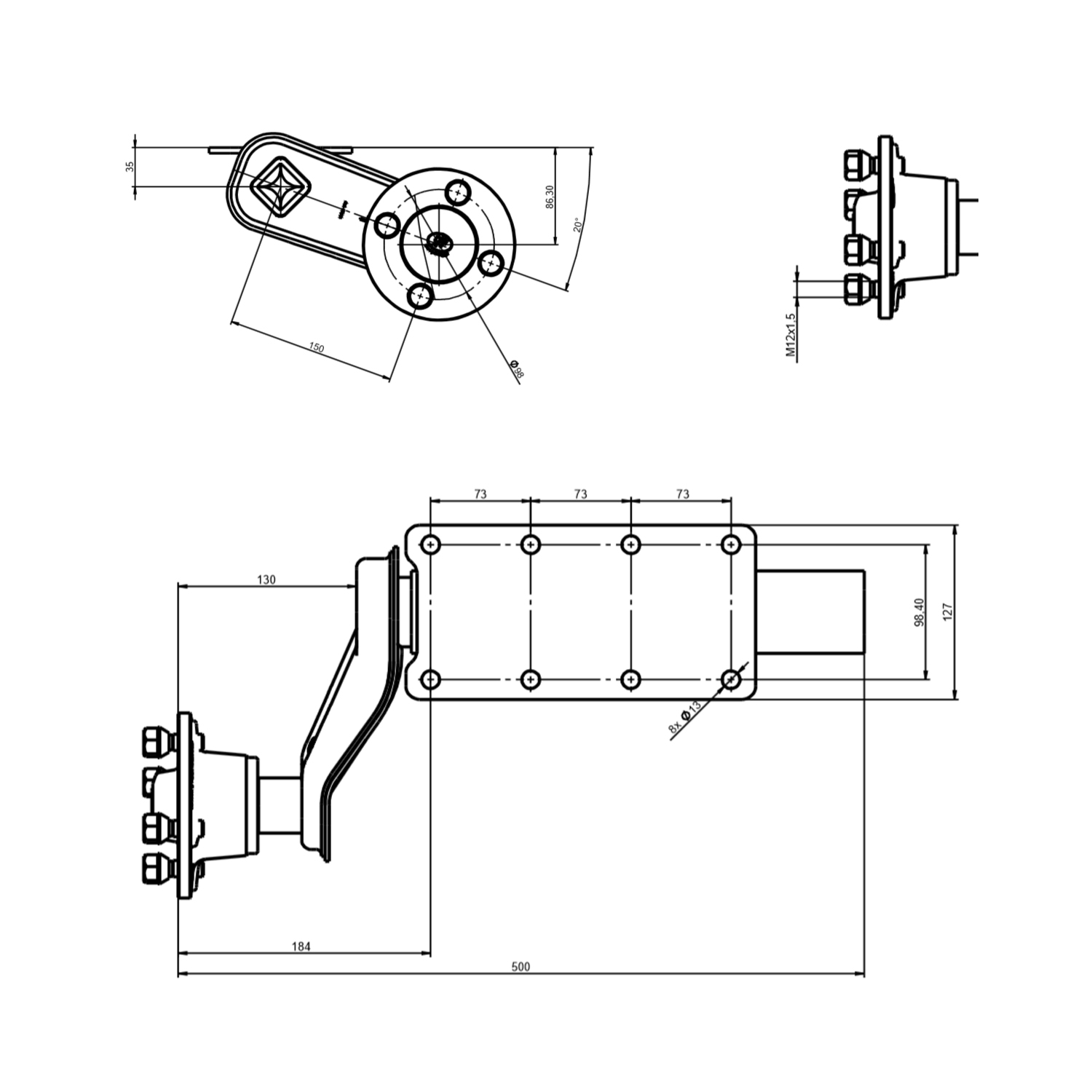

  • 750kg Capacity Per Pair
  • 4 studs on a 4″ (101.6mm) PCD
  • 8 hole mounting plate
  • Fixing centres along the 4 bolt holes 73mm between each one
  • Fixing centres width of the 2 bolt holes 98.4mm between the two


PCD – Pitch circle diameter is the diameter of the wheel studs.


We also stock 550kg suspension units found here.


We do a special deal on these units complete with wheels. You can find the page here.



24 kg
SKU: SPP-PNRL-75-PA1-0506-04-1
