Knott Unbraked Pressed Hitch 50mm

£14.00 (+ VAT)

£16.80 (incl. VAT)

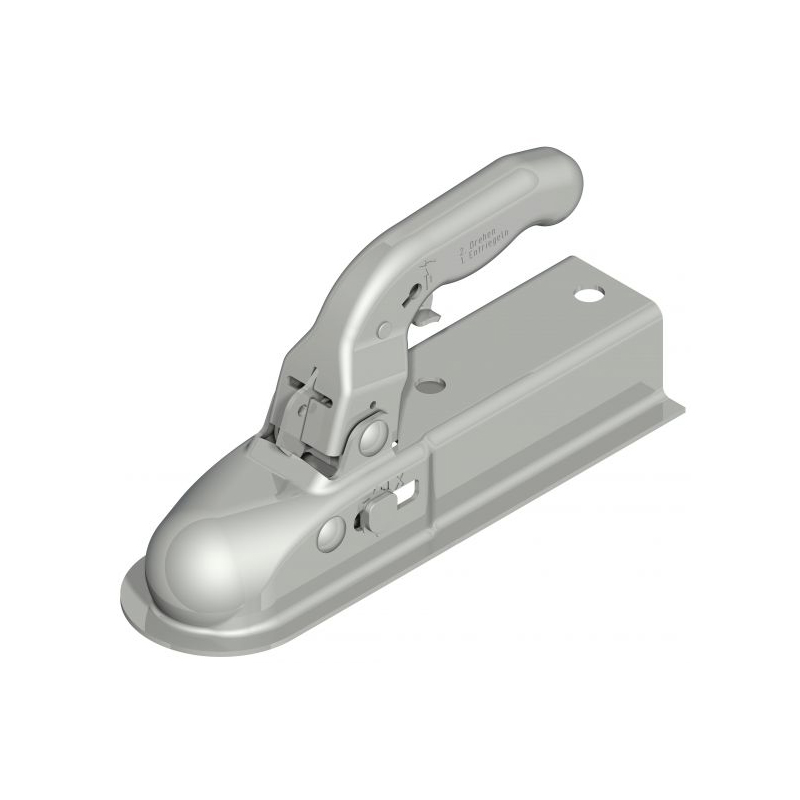

Genuine Knott unbraked pressed hitch 50mm coupling to suit trailers with 50mm box drawbar. This is one of the best quality unbraked couplings on the market made at a high quality.



Specification

  • 2 x M12 bolts (minimum of 8.8nm)
  • Application 750kg max unbraked trailers
  • One of the most common unbraked couplings on the market
  • Suitable for use as a replacement for AL-KO AK7D, Ifor Williams PO0355, Maypole unbraked trailers with 50mm drawbar
  • Pressed steel construction, zinc plated finish
  • 90mm mounting hole centres in top surface
  • ECE License Marked: E1 55R-011040 (it is a legal requirement on all unbraked trailers to have a secondary cable)
  • With wear and correct attachment indicator

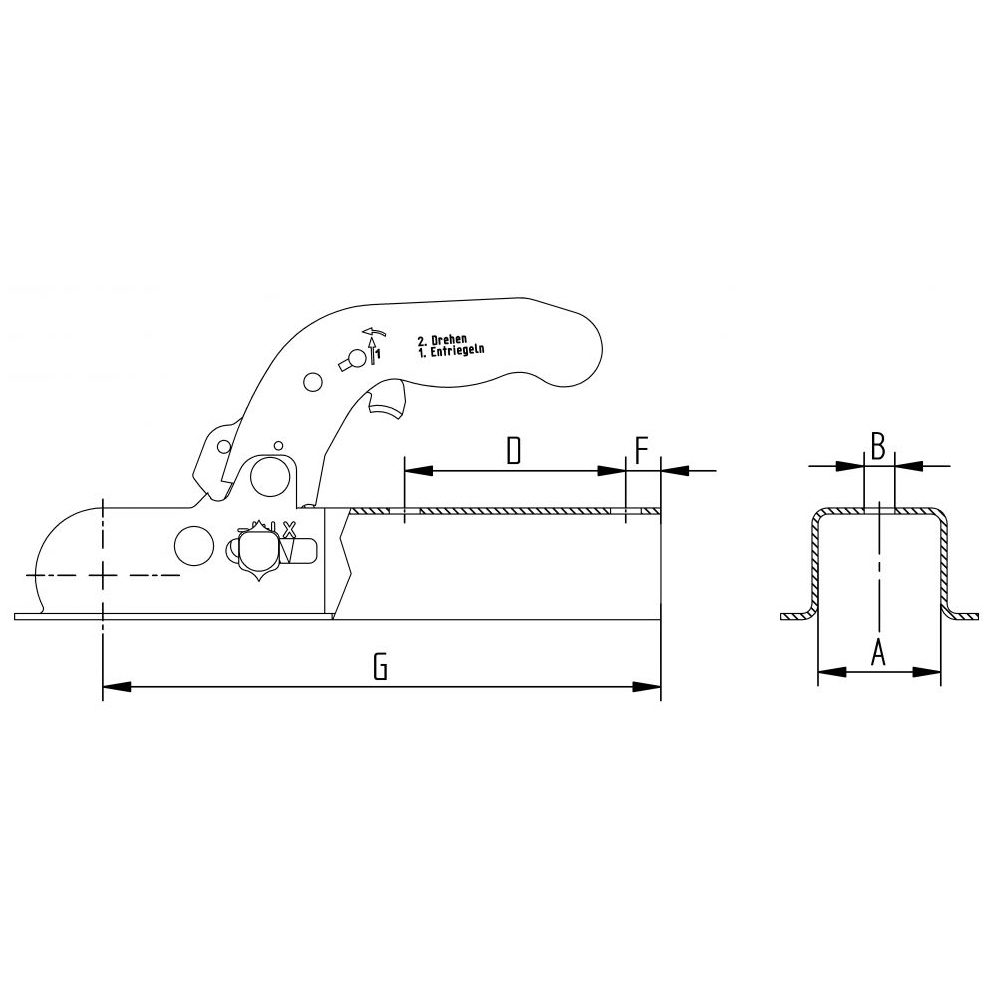

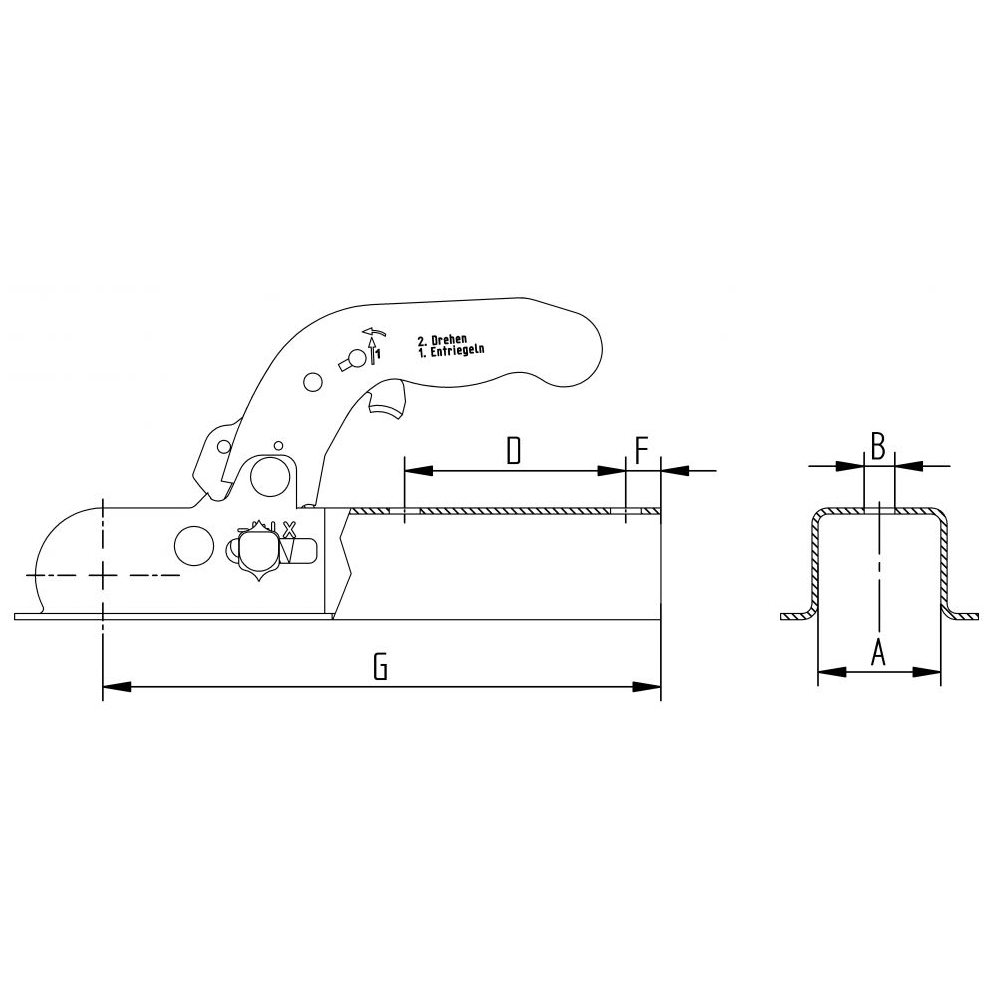

Measurements

  • A = 50mm
  • B = 12.5mm
  • D = 90mm
  • F = 23mm
  • G = 227mm



We also do a premium version of this hitch which is part KQ14.





Specifications

Weight
2 kg
EAN

4250269214427
