Daxara / Erde Trailer Hub, superior quality hub for commercial and private use.
Cast hub for strength and long lasting service life. The hubs comes with sealed metric ball bearings pre pressed into the hub, meaning no fitted required. Hub comes ready to fit to your trailer.
Suitable for a wide range of trailers manufactured by Erde or Daxara with a 115mm PCD.
This unbraked Erde trailer hub comes complete with everything needed to replace the old one. This hub suits the 8″ wheel and the 10″ wheel.

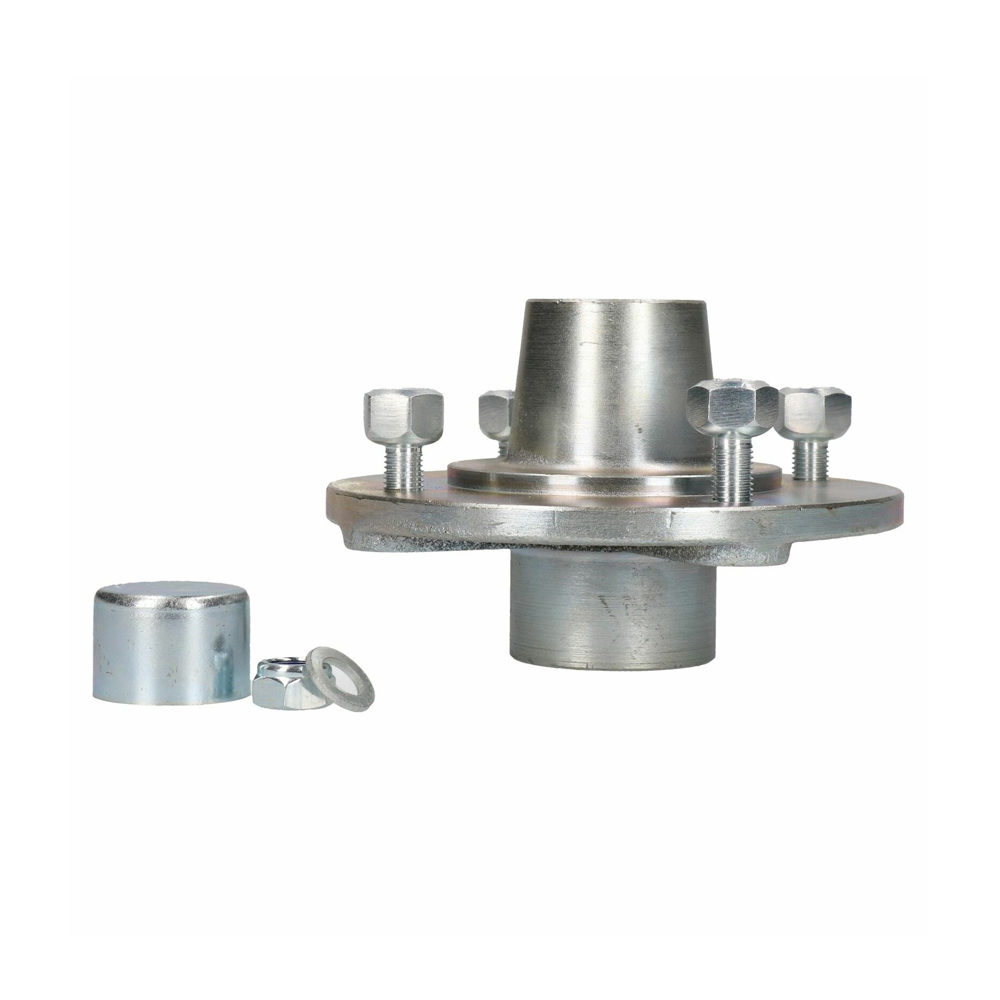

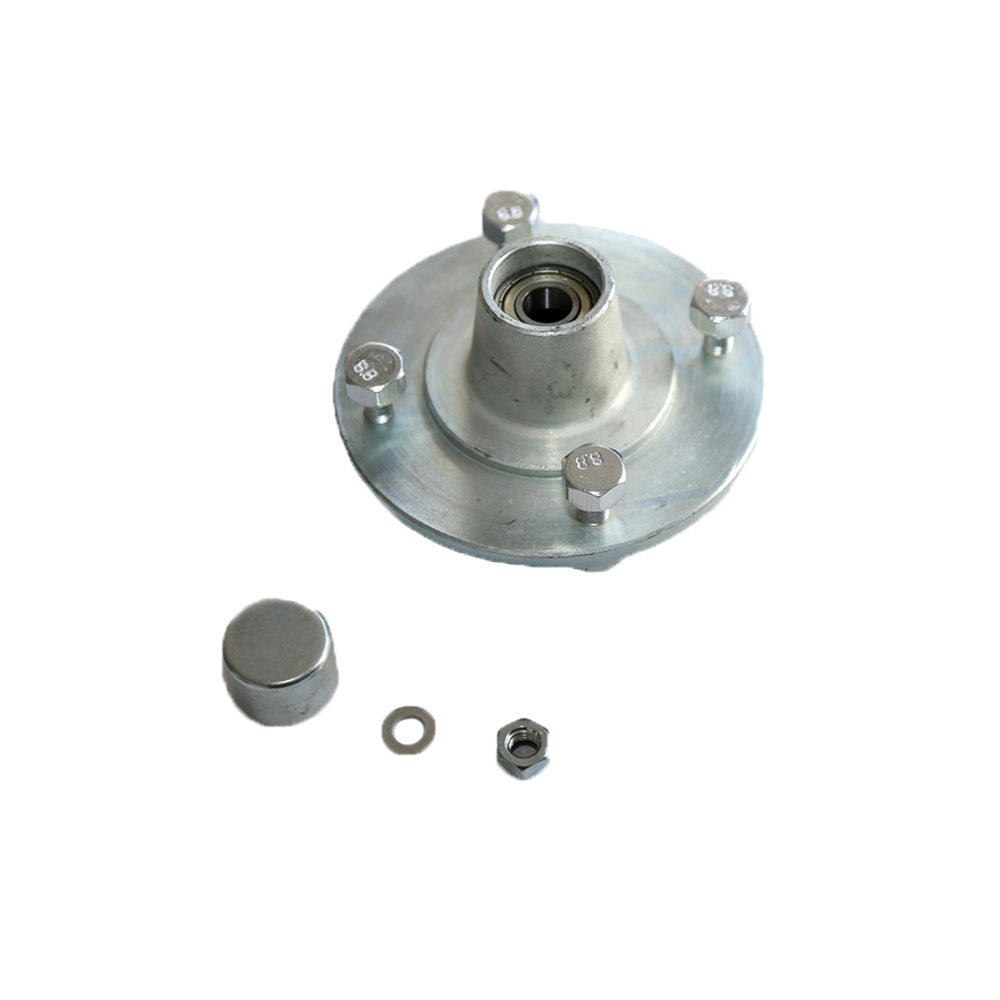

Hub kit includes
1 x Replacement Cast Hub
2 x Sealed Bearings (Pre fitted inner and outer bearings)
1 x Metal Hub Cap
1 x Washer
1 x Locking Nut
4 x Wheel Studs
Hub Specification
4 stud hub with 115mm PCD (PCD = Pitch Centre Diameter)
Rear Bearing Internal Diameter 20mm
Front Bearing Internal Diameter 15mm
Suitable for the following models of trailers
ERDE 100 / 101 / 102 / 120 / 121 / 122 / 130 / 131 and 132 (Fitted with 115mm PCD hubs)
DAXARA – 106 / 107 / 127 / 136 and 137 (Fitted with 115mm PCD wheels)
