£175.00 (+ VAT)
£210.00 (incl. VAT)

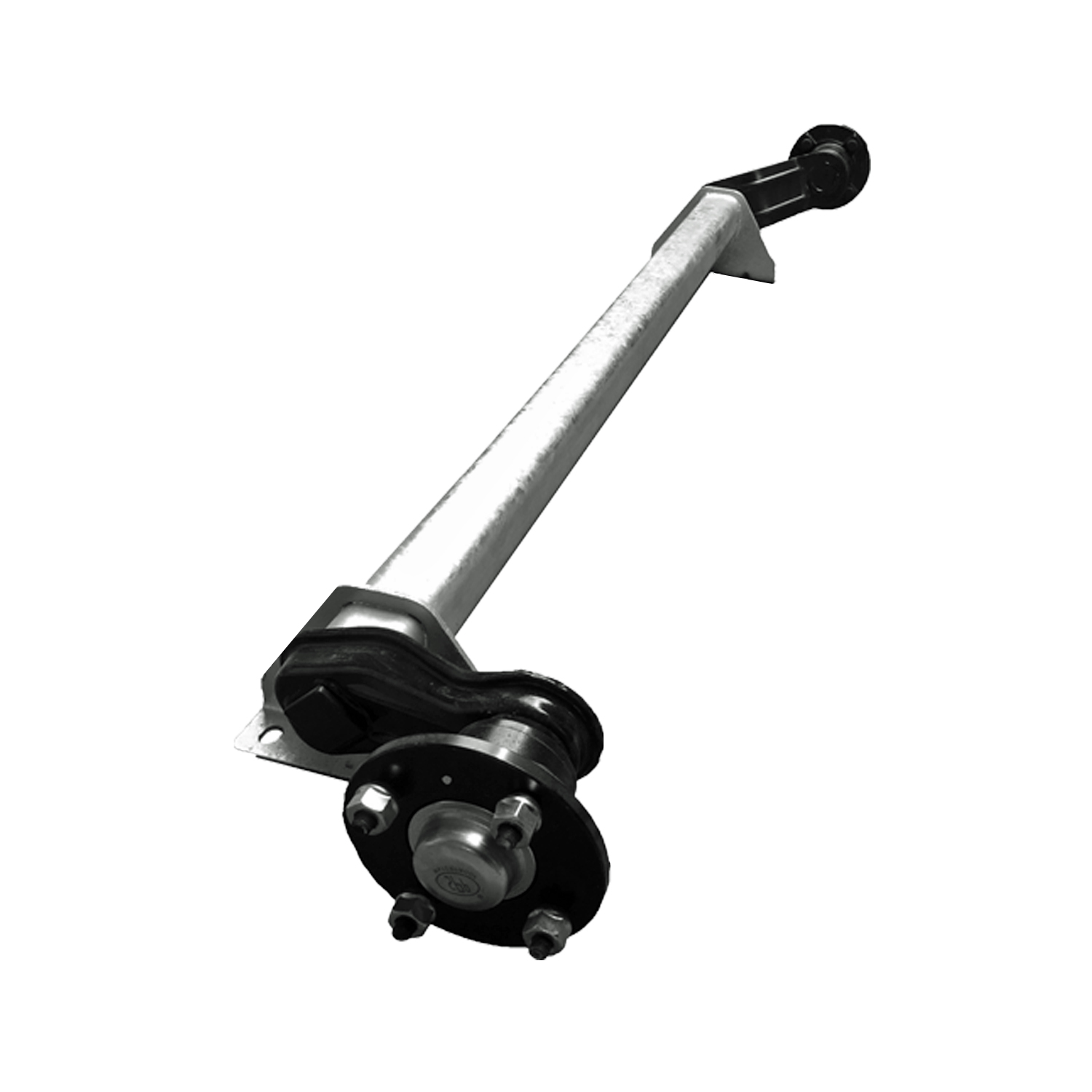

SPP axle unbraked with a capacity of 750kg. Comes complete with SPP hubs and sealed bearings.
Ideal for any self build 4ft trailer or trailer repairs. (not suitable for Graham Edwards Trailers).
IF YOU HAVE ANY DOUBTS ABOUT ORDERING YOUR AXLE OR THE SERIAL NUMBER IS MISSING, PLEASE CONTACT US TO ADVISE. AS THEY ARE VERY HEAVY AND EXPENSIVE TO TRANSPORT.
Sizes
750kg Capacity
4 stud on a 4″ (101.6mm) PCD
Fixing centres – 46″ (1170mm)
Definitions
Fixing Centre – Measurement of the fixing bolt holes centre to centre.
PCD – Pitch circle diameter is the diameter of the wheel studs.

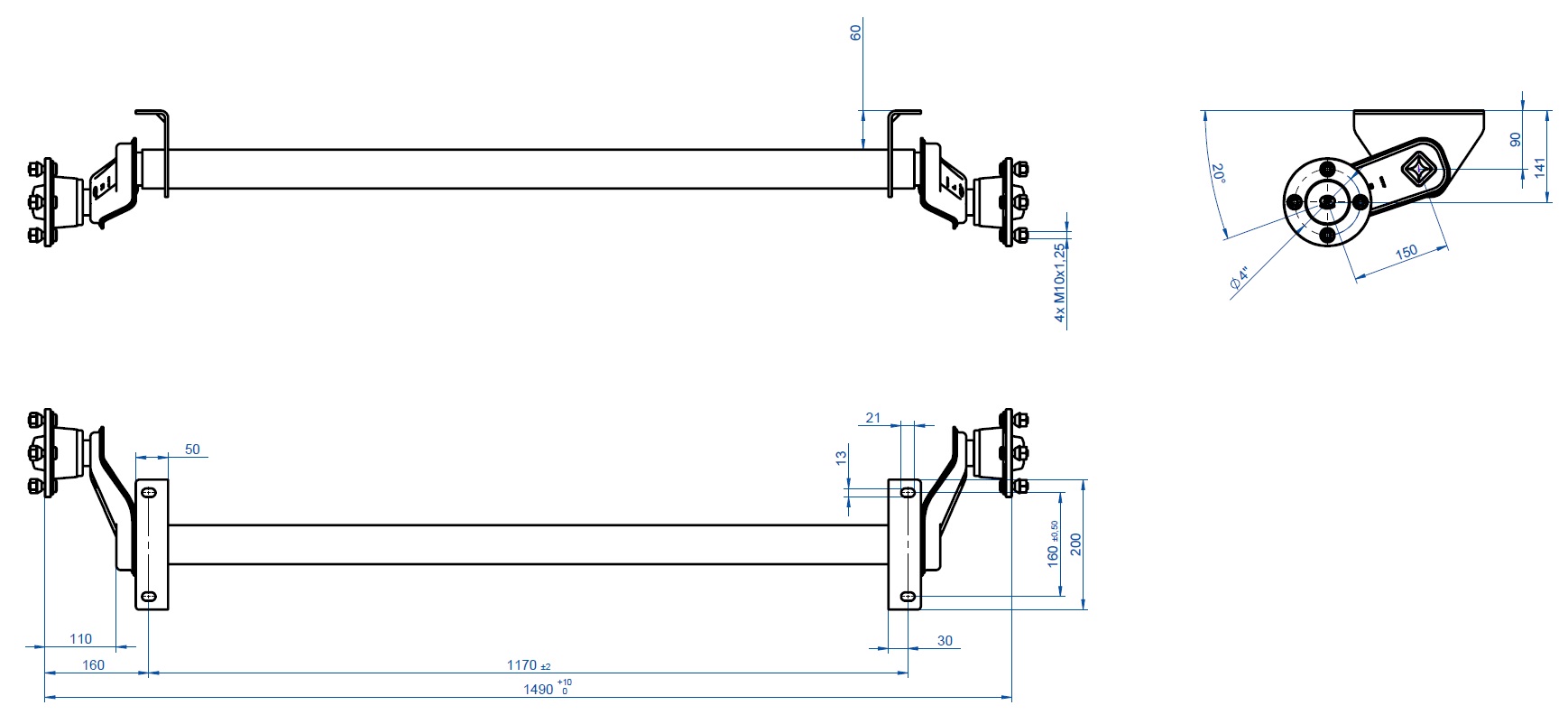

Axle drawings for better understanding can be found here.
