Peak 1500kg Axle 54″ Fixing Centres 5/6.5″ PCD – JANION

£370.00 (+ VAT)

£444.00 (incl. VAT)

Out of stock

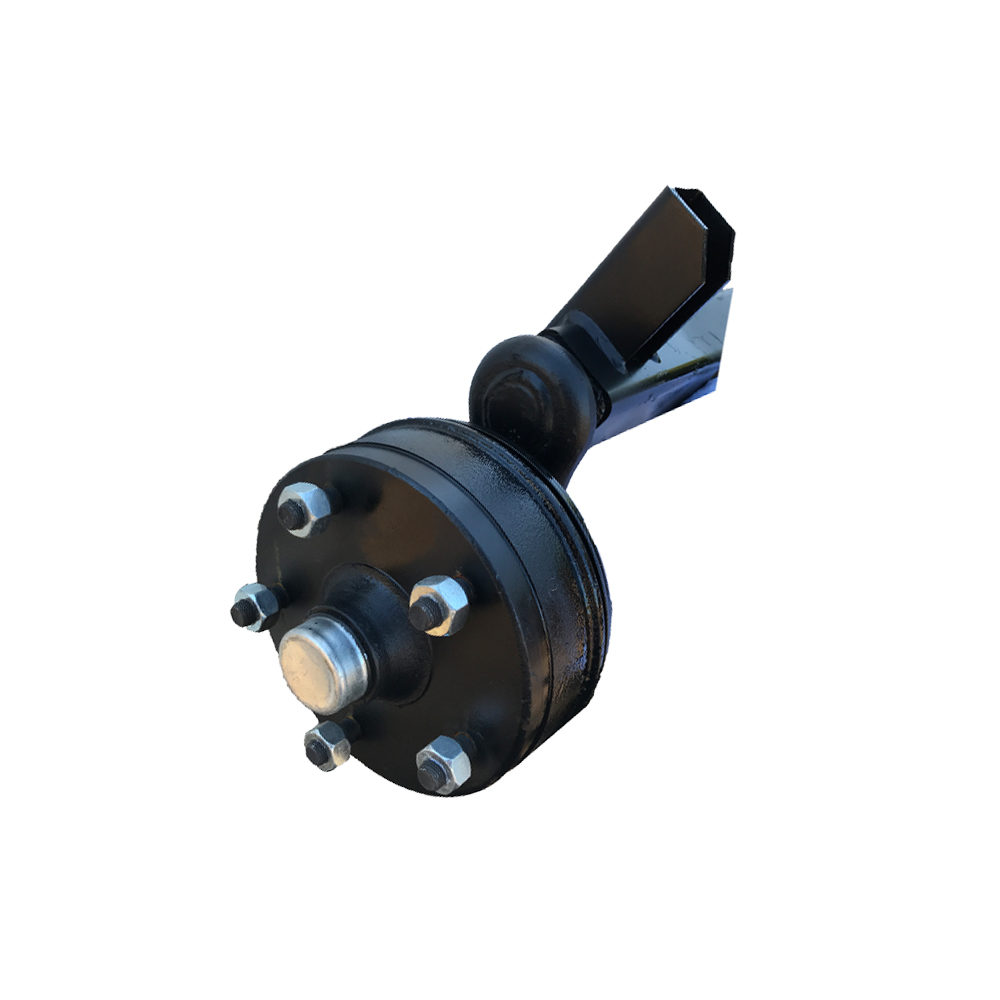

Peak 1500kg axle 54″ fixing centres with rubber suspension. Our name for the axle is Janion.

Comes complete with Knott brakes, drums and bearings.

Fitted to many 6ft6in wide Graham Edwards trailers with wheels underneath pre 2012.

Also fitted to some Equi-Trek trailers pre 2012 such as the Star-Treka. Check sizes to confirm.



Dimensions

Over Hub Face: 69½”

Cut Length: 57½”

Fixing Centre: 54″

Brake Drum Internal Diameter: 8″ (200mm)

PCD: 5 Stud on 6.5″

IF YOU HAVE ANY DOUBTS ABOUT ORDERING YOUR AXLE PLEASE CONTACT US TO ADVISE. AS THEY ARE VERY HEAVY AND EXPENSIVE TO TRANSPORT.



Definitions

Over Hub Face – Measurement of the hub face to the opposite hub face.

Cut Length – Measurement of the overall axle beam.

Fixing Centre – Measurement of the fixing bolt holes centre to centre.

PCD: Pitch circle diameter is the diameter of the wheel studs.



Axle drawings for better understanding can be found here.



Specifications

Weight
60 kg
Country of manufacture
SKU: AX1.5LJANION Tag:
