£350.00 (+ VAT)
£420.00 (incl. VAT)

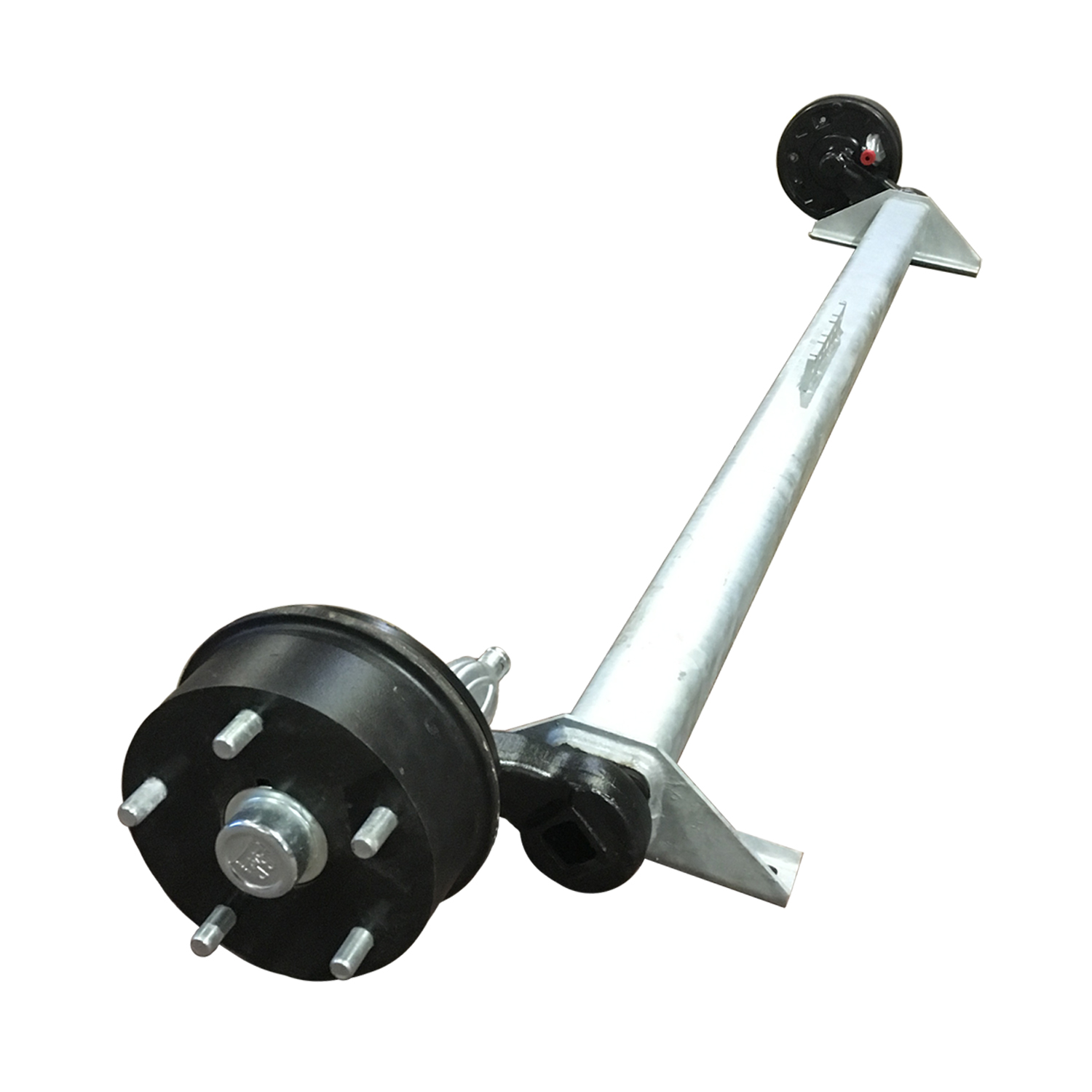

BPW axle 681 braked with a capacity of 1500kg. Comes complete with BPW brakes, drums and bearings.
Fitted to many Graham Edwards trailers post 2012.
BPW axle number 681.
Replacement for the BPW 230 axle.
IF YOU HAVE ANY DOUBTS ABOUT ORDERING YOUR AXLE OR THE SERIAL NUMBER IS MISSING, PLEASE CONTACT US TO ADVISE. AS THEY ARE VERY HEAVY AND EXPENSIVE TO TRANSPORT.
8″ Drum with 5 studs on a 6.5″ PCD
Fixing centres – 1855mm
Over Hub Face – 2325mm
Over Hub Face – Measurement of the hub face to the opposite hub face.
Fixing Centre – Measurement of the fixing bolt holes centre to centre.
PCD – Pitch circle diameter is the diameter of the wheel studs.
Axle drawings for better understanding can be found here.
