Trailer hub 4 stud with a 4″ PCD complete with roller bearings suitable for many makes of trailer fitted with 1″ (25.4mm) stub axles.
The bearing shells are pre pressed into the hub ready for quick fitting. Hubs are complete with grease nipples.
This hub is suitable for the following Maypole units: MP206, MP207, MP208, MP210, MP211, MP212, MP214
Cast 4 Stud Trailer Hub

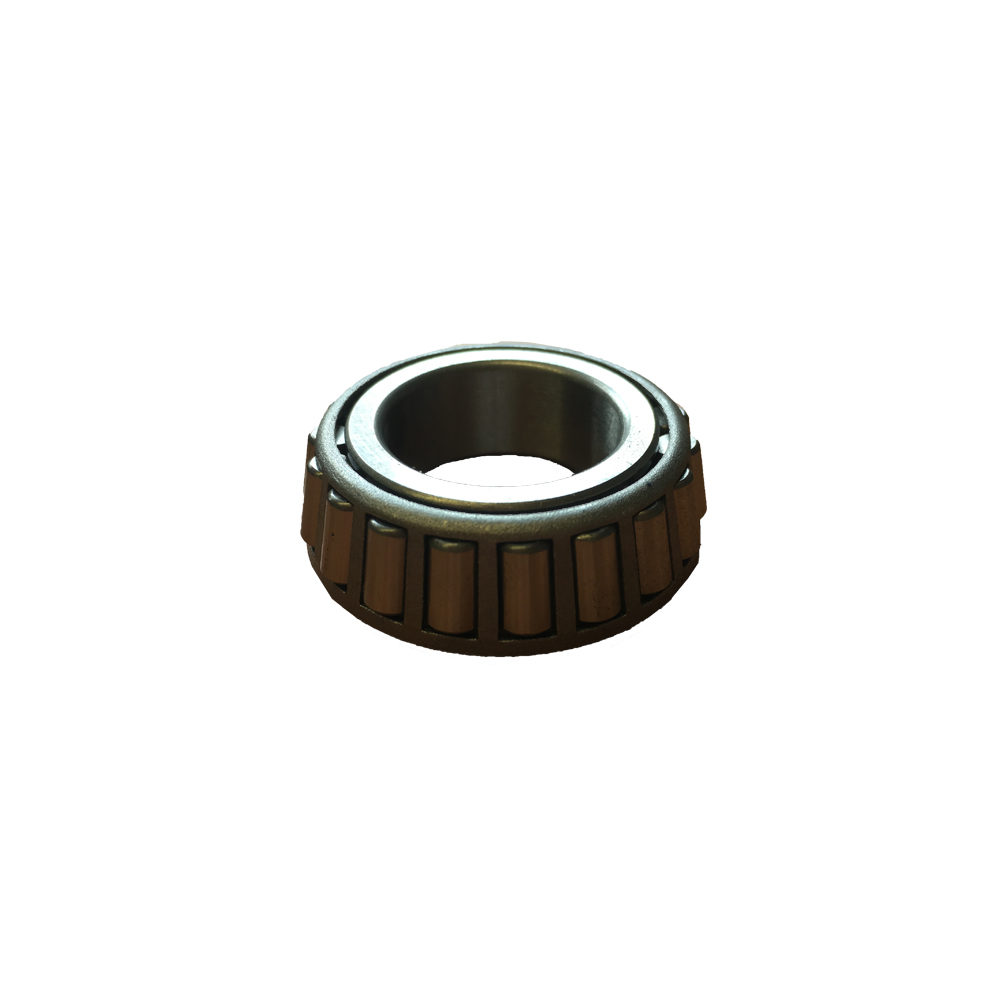

Inner 1″ Taper Roller Bearing

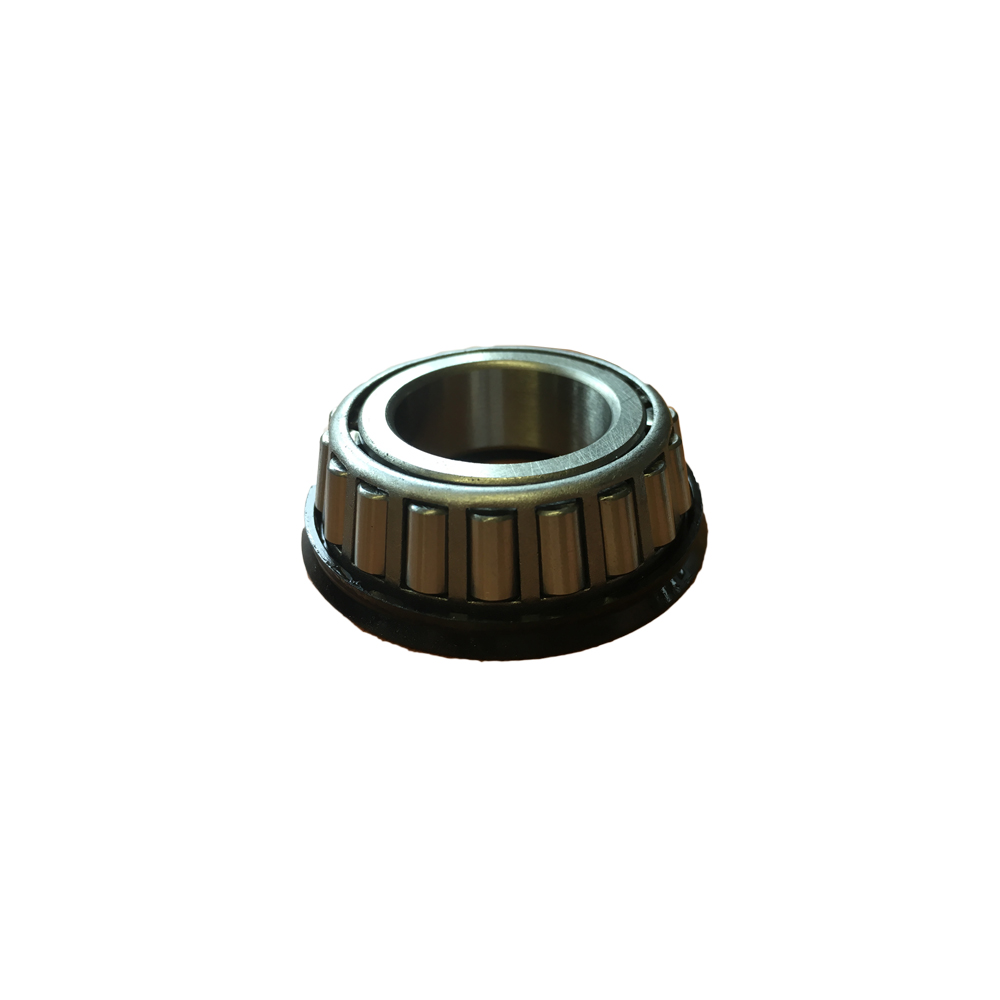

Outer 1″ Taper Roller Bearing c/w Seal
750kg Capacity Per Pair
3/8″ UNF Studs
4 Stud on 4″ (101.6mm) PCD
Internal bearing size 1″ (25.4mm)
PCD – Pitch circle diameter is the diameter of the wheel studs.
We also stock hubs and stubs with sealed bearing found here.
