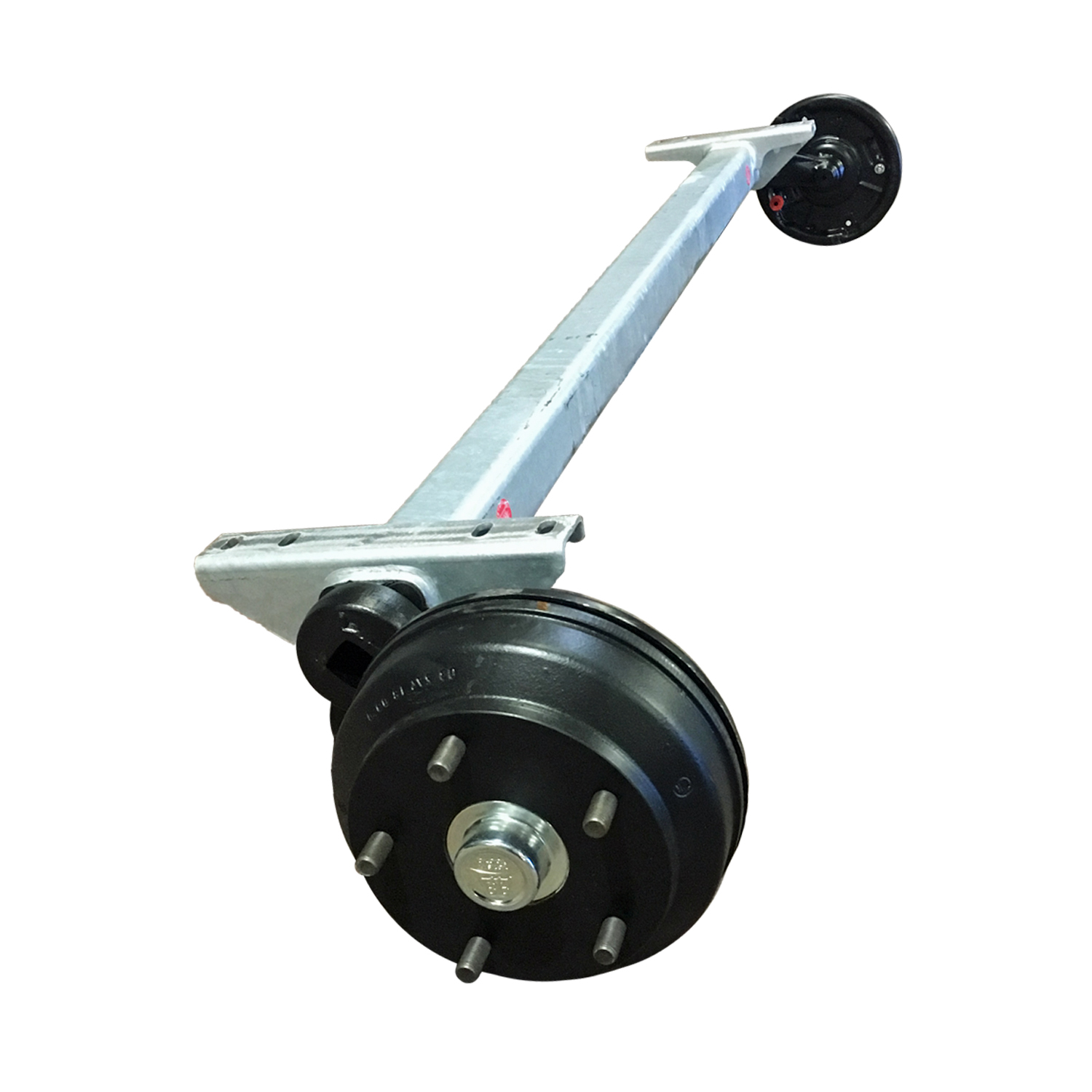

BPW Axle 817 Braked

BPW axle 817 braked with a capacity of 1800kg. Comes complete with BPW brakes, drums and bearings.

Fitted to many Graham Edwards trailers post 2012.

BPW axle number 817.

IF YOU HAVE ANY DOUBTS ABOUT ORDERING YOUR AXLE OR THE SERIAL NUMBER IS MISSING, PLEASE CONTACT US TO ADVISE. AS THEY ARE VERY HEAVY AND EXPENSIVE TO TRANSPORT.

Sizes
1800kg Capacity
10″ Drum with 5 studs on a 6.5″ PCD
Fixing centres – 1690mm
Over Hub Face – 2160mm

Definitions
Over Hub Face – Measurement of the hub face to the opposite hub face.
Fixing Centre – Measurement of the fixing bolt holes centre to centre.
PCD – Pitch circle diameter is the diameter of the wheel studs.

Axle drawings for better understanding can be found here.
