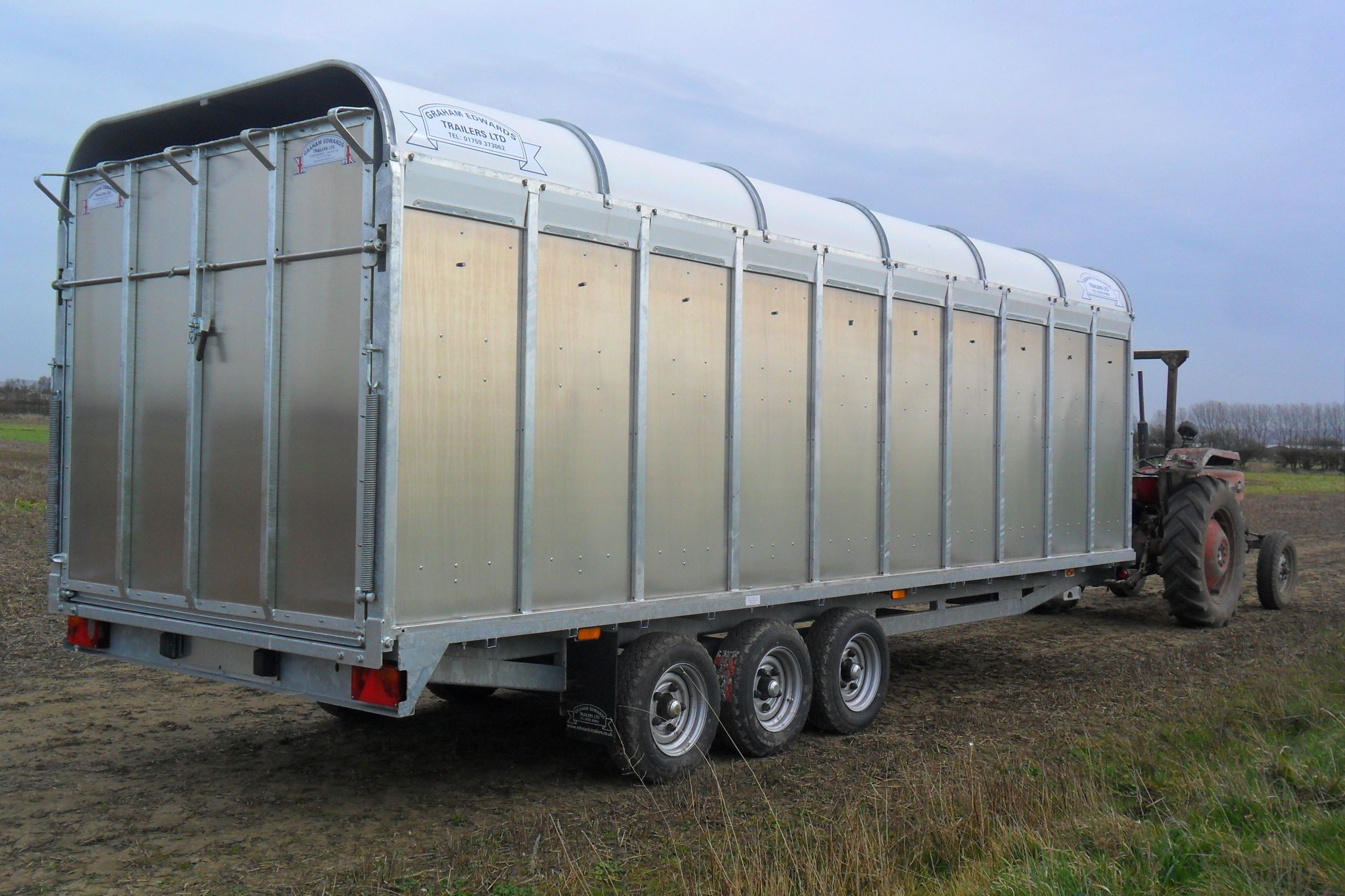

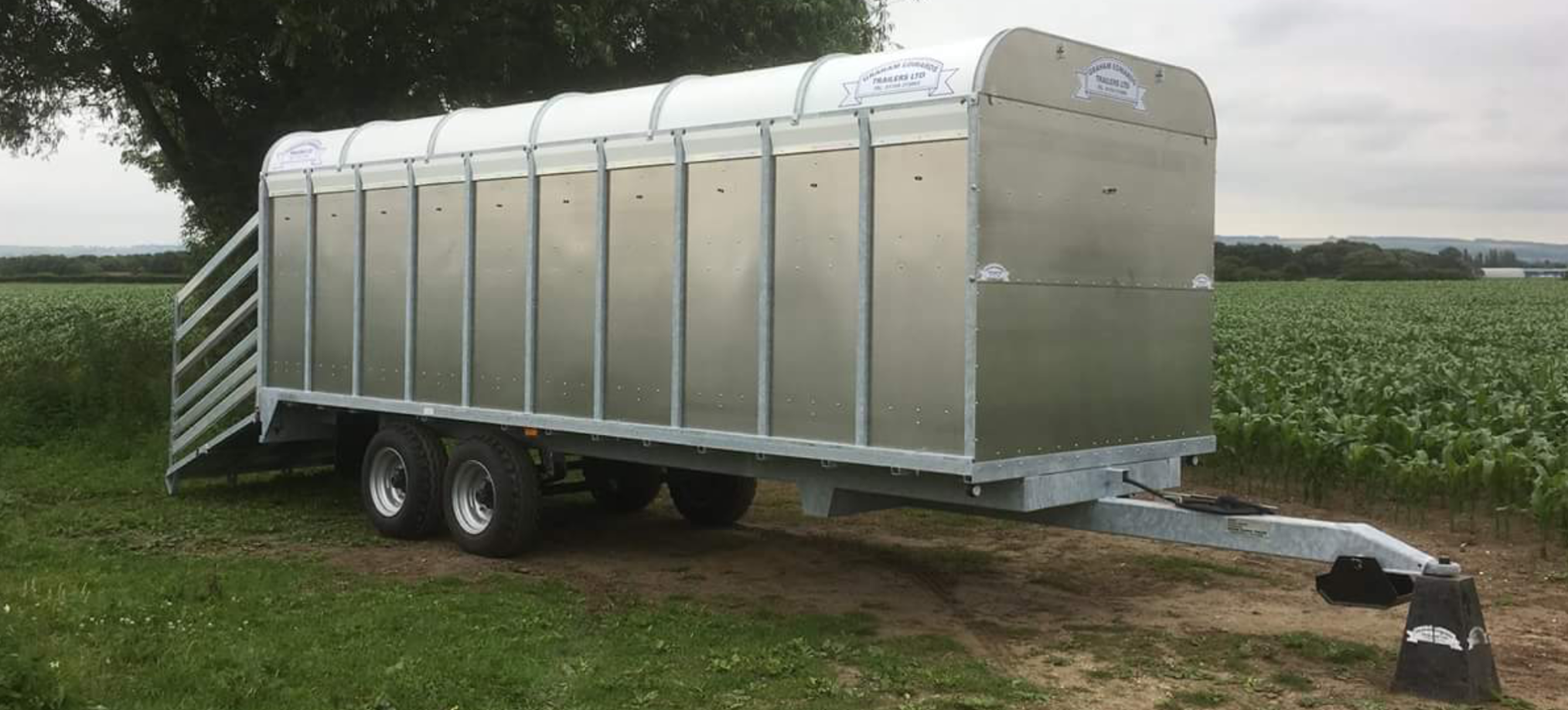

Tractor Drawn Livestock (TDL&M)

Our Tractor Drawn livestock trailers provide the option of increased livestock transportation and can be fitted with either manual or power deck options. These trailers have a lower centre of gravity compared with normal tractor drawn equipment and also provide a lower ramp loading angle.

With a gross weight of 6.5 ton on the TDL model and 8.0 ton on the TDM, the transportation of a large number of livestock is made cost effective with the TDL & M trailers.

The tractor drawn livestock range also uses the container, decks, partitions and gates from the tried and tested Graham Edwards range giving a long life and reliability.

Models

TDL6418
Gross Weight
6400KG
Unladen Weight
1900KG
Length
18'
Width
7'
Bed Height (Inches)
26
Number of Axles
TRI
Tyre Size
185 X 13
TDL6420
Gross Weight
6400KG
Unladen Weight
1900KG
Length
20'
Width
7'
Bed Height (Inches)
26
Number of Axles
TRI
Tyre Size
185 X 13
TDM820
Gross Weight
8000KG
Unladen Weight
1925KG
Length
20'
Width
7'
Bed Height (Inches)
32
Number of Axles
TANDEM
Tyre Size
10.00/75 X 15.3

TDL&M trailers have the wheels underneath the container so that the body is separate from the chassis.

Our Tractor Drawn Livestock trailers have the following features:

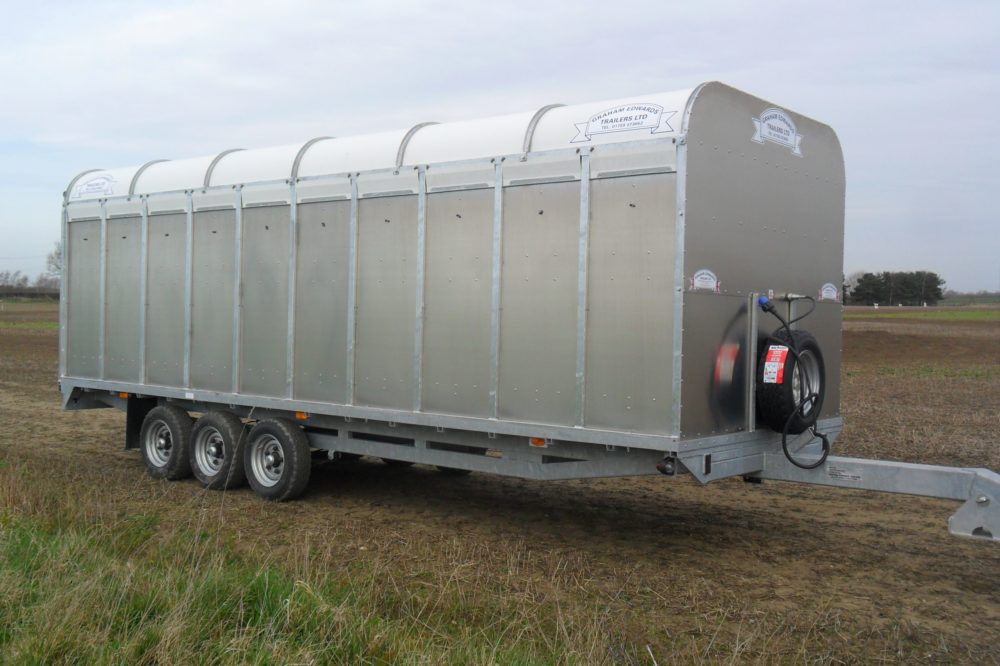

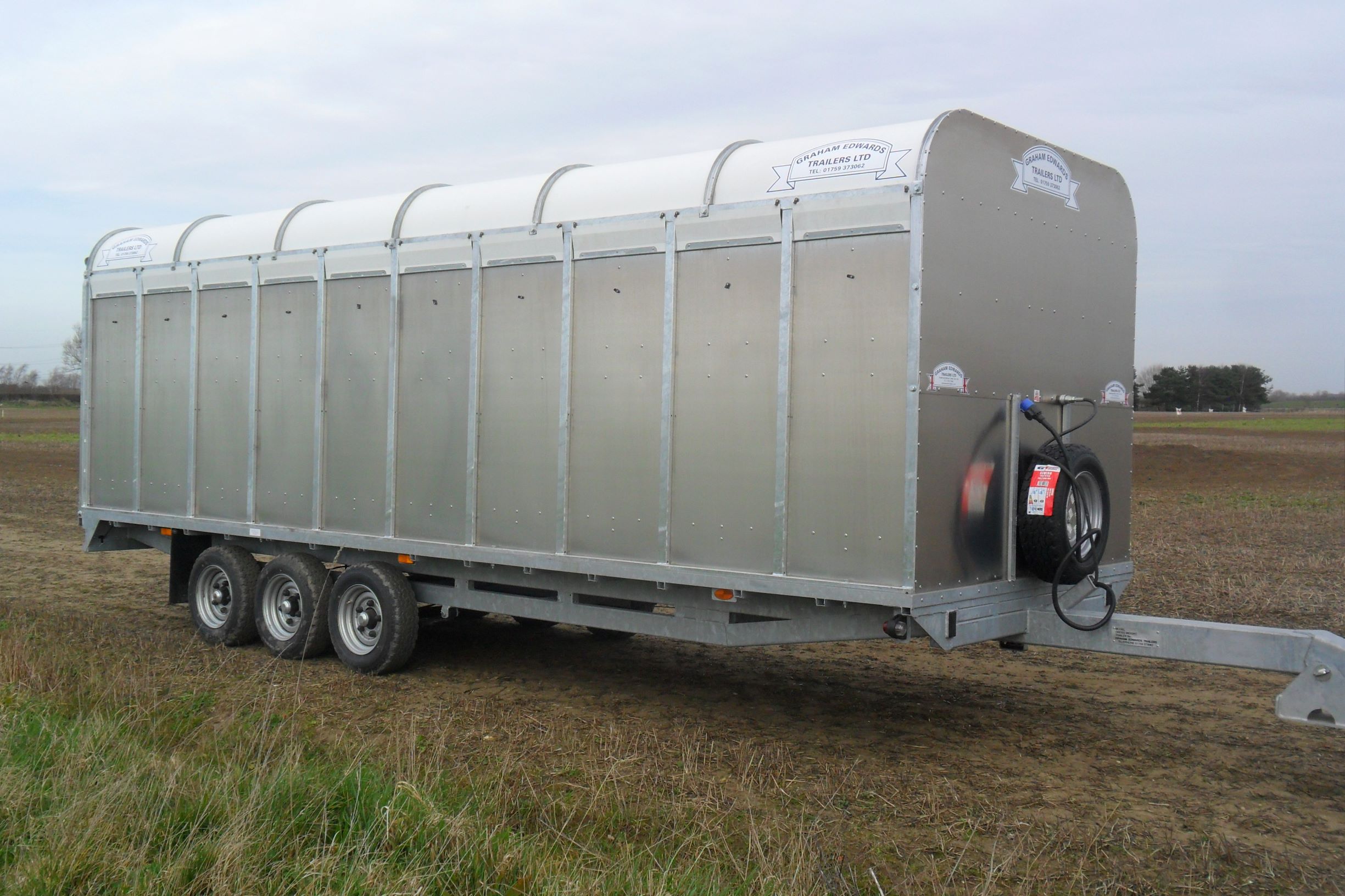

  • Spare wheel storage.
  • Rigid welded framework construction hot dip galvanised after fabrication.

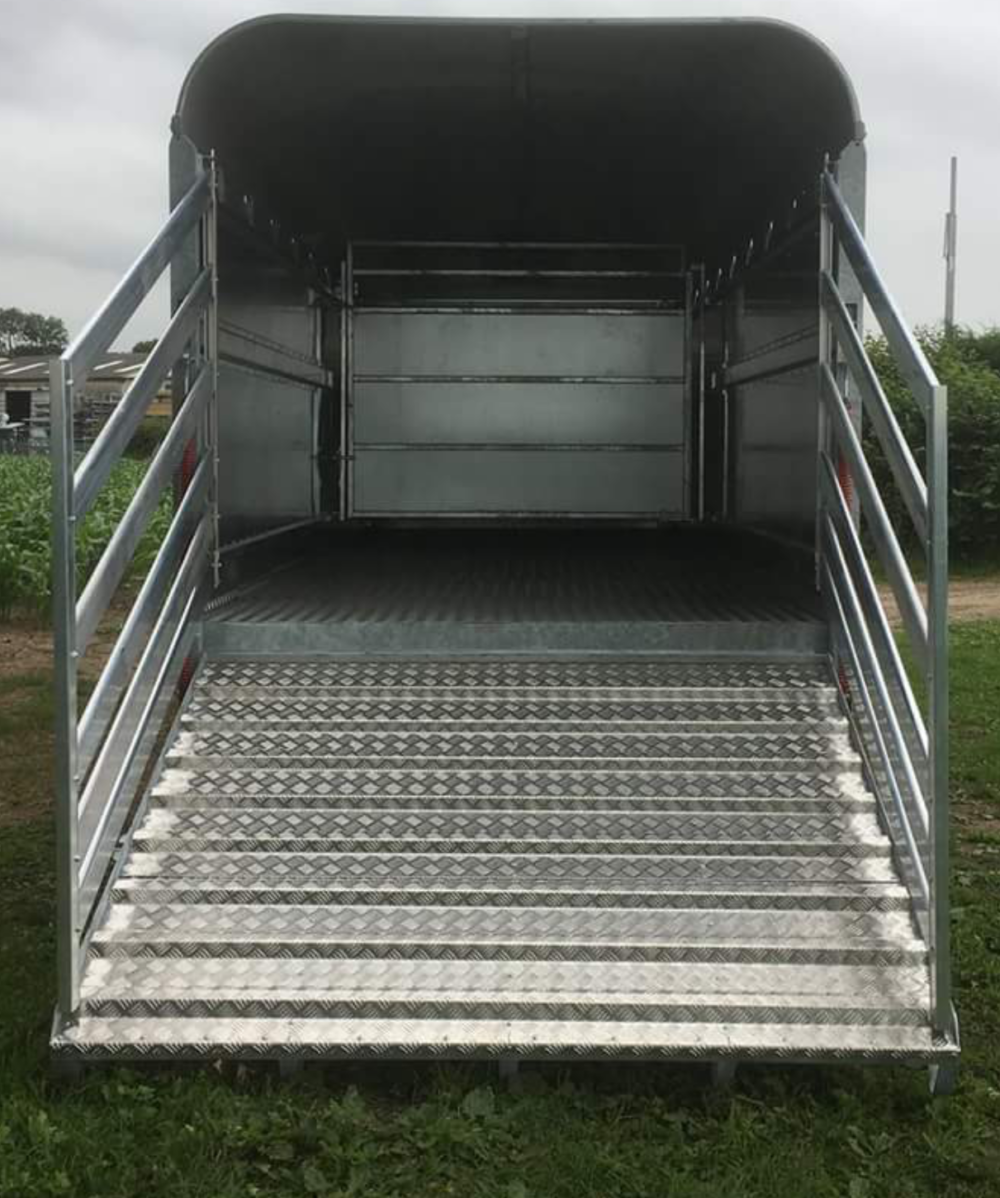

  • Aluminium tread plate floors, tray shaped in fixed formation trailers.

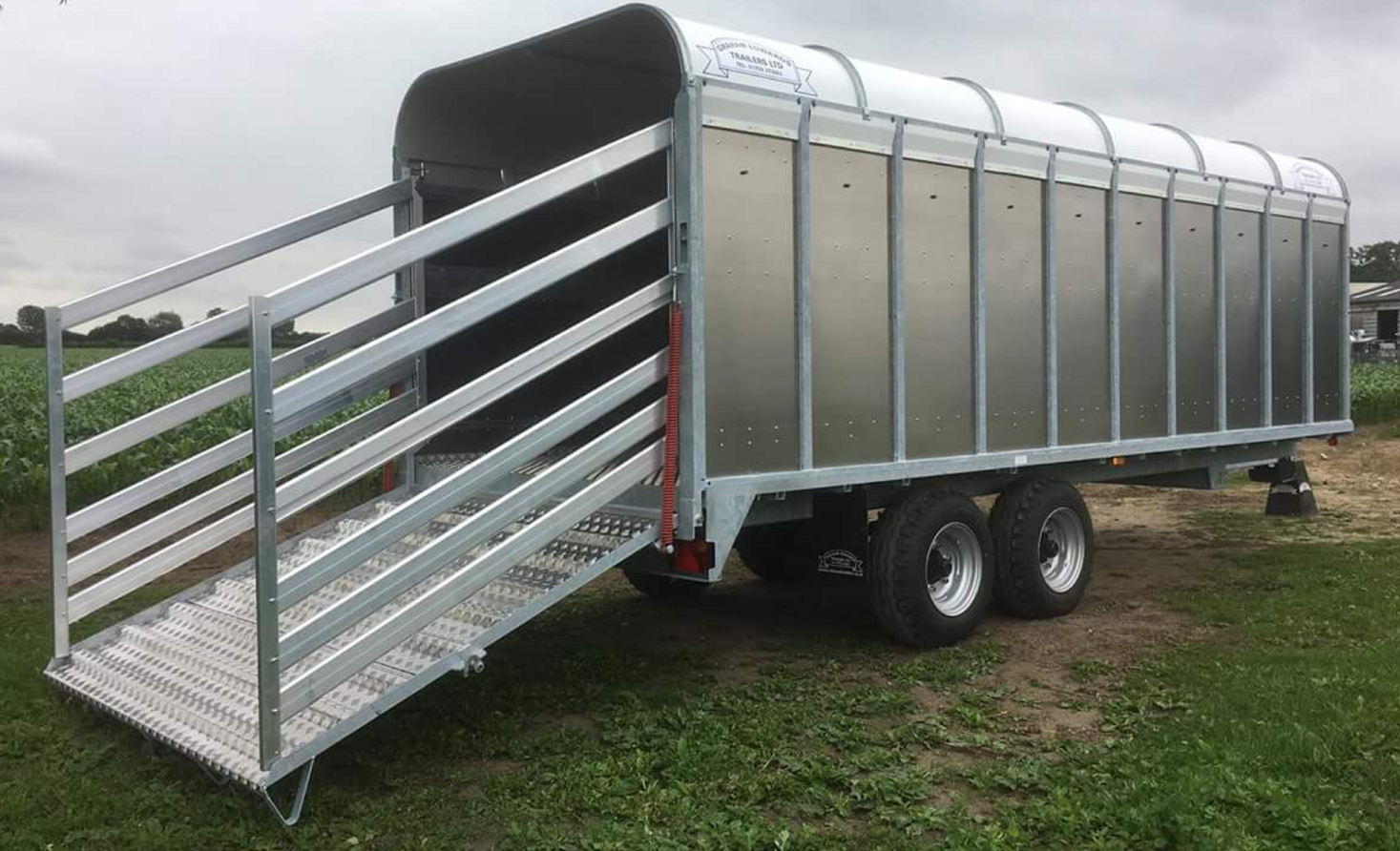

  • Ribbed and shaped aluminium extrusion planking on tail ramps.
  • Double inspection doors.
  • Closable side vents.
  • Alloy loading gates.
  • Leaf spring suspension.
  • Hydraulic braking system.
  • Fully approved lighting systems with double seal connections.
  • Protective light boxes.
  • Thermoplastic mud flaps.

Main Advantages:

  • Body can be lifted off enabling the chassis to be used for other purposes.
  • Wider bodied trailers allowing stock more room to turn.
